Every optical link has a power budget. As a signal travels through fiber, connectors, splices, splitters, filters and wavelength-division multiplexers, part of its optical power is lost. When the signal arriving at the receiver becomes too weak, the bit-error rate may increase or the link may stop operating.
A fiber optic amplifier compensates for part of this loss by increasing optical signal power without first converting the signal into an electrical data stream.
Optical amplifiers are used in applications such as:
However, an amplifier cannot simply be inserted into any fiber link. Its wavelength, gain, output power, noise, saturation behavior and position must match the complete optical system.
A fiber optic amplifier is an active optical device that increases the power of an optical signal while the information remains in the optical domain.
Depending on the technology, the gain medium may be:

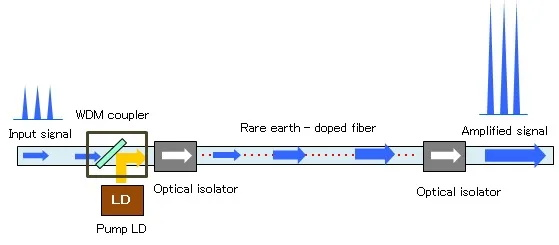

An EDFA, for example, passes the signal through a section of fiber containing erbium ions. Pump-laser energy excites the ions, allowing stimulated emission to amplify compatible optical signals. Practical EDFA pump bands commonly include 980 nm and 1480 nm.
An optical amplifier and an optical repeater are not equivalent.
| Function | Optical Amplifier | OEO Repeater or Regenerator |
|---|---|---|
| Signal conversion | Remains optical | Optical to electrical to optical |
| Optical power restoration | Yes | Yes |
| Pulse reshaping | No | Possible |
| Clock retiming | No | Possible |
| Noise removal | No | Partial or substantial regeneration |
| Wavelength transparency | Amplifier-band dependent | Transceiver dependent |
| Protocol awareness | Generally none | May depend on implementation |
| Main function | Increase optical power | Recover and retransmit data |
An optical amplifier can reduce the need for electrical regeneration, but it does not make light travel faster. It also does not correct timing errors, chromatic dispersion or waveform distortion.
Although amplifier technologies use different physical mechanisms, they follow the same basic concept:
The amplifier also introduces noise and has a finite energy capacity. As input power or total channel loading increases, gain may compress and the amplifier may approach saturation.
The Erbium-Doped Fiber Amplifier, or EDFA, is the most established amplifier technology for optical communication around the 1550 nm region.
It uses erbium-doped fiber as the gain medium and is normally pumped at approximately 980 nm or 1480 nm. Its operating range commonly overlaps the C-band and, with a different design, the L-band.
A Raman amplifier uses stimulated Raman scattering to transfer energy from one or more pump wavelengths to the signal.
In a distributed Raman system, part of the transmission fiber itself becomes the gain medium. This differs from an EDFA, where gain is concentrated inside a dedicated section of erbium-doped fiber.
Raman gain depends on the installed span, including fiber type, attenuation, connectors, splices and other loss-producing components.
Raman and EDFA technologies are frequently combined.
The Raman stage provides distributed gain along the transmission fiber, while the EDFA provides concentrated gain at a network node. Commercial optical systems use this combination to improve reach and noise performance.
A Semiconductor Optical Amplifier, or SOA, uses an electrically driven semiconductor gain region.
Its construction is similar in concept to a semiconductor laser, but the device is designed to amplify an externally supplied optical signal rather than operate primarily as an independent laser source.
Commercial SOA-based systems are available for O-band and other applications where conventional C-band EDFAs are not suitable.
An EYDFA uses fiber co-doped with erbium and ytterbium.
Erbium provides gain around the 1550 nm region, while ytterbium can improve pump absorption and support higher-power architectures. Erbium–ytterbium co-doped fibers are used in amplifier and laser systems over a broad range of output powers.
EYDFAs are commonly associated with:
“High power” should be expressed through an actual output-power specification, such as +23 dBm, +27 dBm or a watt-level value, rather than an undefined product category.
Other rare-earth elements can support amplification in different wavelength regions.
Examples include:
These technologies are more common in laser processing, sensing, medical systems and scientific research than in conventional 1550 nm telecom links.
EDFA, Raman and SOA describe the amplification technology.
Booster, in-line and pre-amplifier describe the position or function in the network.
These two classification systems should not be mixed.
A booster amplifier is installed after the optical transmitter or terminal equipment.
Its purpose is to increase launch power before the signal enters:
Important specifications include:
An in-line amplifier is installed between two fiber spans.
It compensates for attenuation from the preceding span and provides sufficient power for the next span.
Important parameters include:
When several in-line amplifiers are cascaded, ASE accumulates and the OSNR gradually deteriorates.
A pre-amplifier is placed close to the receiver.
It increases the power of a weak incoming signal before detection.
A pre-amplifier generally prioritizes:
Commercial optical line systems often integrate separate booster and pre-amplifier sections with different gain ranges and control requirements.
A dual-stage EDFA contains two amplifier stages with an accessible point between them.
The mid-stage port may allow the system designer to insert:
The EDFA itself does not necessarily add or remove wavelength channels. It provides an accessible location where another optical component can be inserted between amplification stages.
Gain indicates how much the amplifier increases optical power.
Gain in dB = Output signal power in dBm − Input signal power in dBm
For example:
The rated maximum gain may not be available across every wavelength, input-power level or channel-loading condition.
Saturated output power describes the practical upper limit of useful output power.
As the amplifier approaches saturation:
An amplifier should therefore be selected by both gain and maximum output power.
Noise figure describes how much the amplifier degrades the signal-to-noise ratio.
A lower value is generally preferable, especially for:
Gain, output power and noise figure are three of the primary parameters used to characterize optical amplifiers.
Amplified Spontaneous Emission, or ASE, is broadband optical noise generated inside the amplifier.
ASE can:
EDFAs are a major ASE source in amplified optical networks, and their number, gain and position must be considered during system planning.
Confirm whether the amplifier is designed for:
An EDFA designed for the C-band will not effectively amplify an 850 nm or conventional 1310 nm signal.
In a multi-channel system, gain may vary with wavelength.
Without gain flattening, one DWDM channel may leave the amplifier with substantially more power than another.
Gain-flattened EDFA designs are intended to maintain a more uniform gain level across a defined wavelength range.
Gain tilt describes the slope of the amplifier gain across the optical spectrum.
Even when total output power is correct, excessive tilt can produce poor channel-power uniformity.
Some optical line systems provide tilt-control functions, but their controllable range may depend on amplifier gain and operating mode.
The amplifier must operate correctly at the expected input level.
If input power is too low:
If input power is too high:
For WDM systems, determine whether the specification refers to:
A DWDM amplifier output of +23 dBm does not mean that every channel has +23 dBm.
For equal channel powers:
Per-channel power ≈ Total power − 10 log₁₀(number of channels)
For example, +23 dBm divided equally among 40 channels corresponds to approximately +7 dBm per channel before accounting for ripple and unequal loading.
Polarization-Dependent Gain describes how gain changes with the signal’s state of polarization.
It is important in:
A PM EDFA must also preserve axis alignment throughout the input fiber, gain section, passive components and output fiber.
Depending on the design, an amplifier may support:
Maintains a target gain as input power changes.
Maintains a target output-power level.
Maintains a fixed pump-laser current.
Higher-level optical line systems may use channel monitoring and dynamic gain regulation to respond to channels being added or removed. Cisco optical amplifier modules, for example, combine gain regulation with per-channel optical monitoring.
EDFA and Raman systems are widely used to compensate for span loss in wavelength-division-multiplexed optical networks.
One amplifier can support multiple wavelength channels, provided that:
Modern optical line systems combine booster, pre-amplifier, in-line EDFA and optional Raman amplification according to the span design.
Amplifiers may form part of a managed optical line system connecting:
An amplifier should not be inserted into an ordinary client-optics link without checking:
Some direct-detect client optics are not designed for arbitrary amplified operation.
CATV amplifiers commonly prioritize:
High-power EDFA or EYDFA designs may distribute one optical source through several passive branches.
The required amplifier must be selected from the optical split ratio, path loss, receiver range and required performance of the analog or digital transport system.

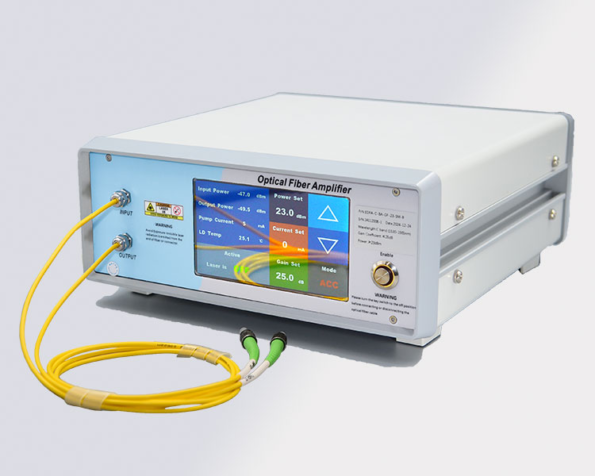

Laboratory EDFAs, SOAs and VOAs are used for:
Commercial laboratory EDFAs may provide low-noise and gain-flattened versions specifically for optical-system testing.
Conventional PON systems are designed around defined passive-distribution-network loss budgets.
Optical amplifiers or regenerators may be introduced in specialized reach-extension designs, but this is not the normal configuration of every FTTH link.
ITU-T G.984.6 defines GPON reach extenders using optical-amplifier, OEO and hybrid architectures. ITU-T G.9807.2 provides corresponding concepts for extended-reach XG(S)-PON systems.
A reach extender must account for both downstream and burst-mode upstream transmission, wavelength plan, management and compatibility with the OLT and ONUs.
Fiber amplifiers are also used in:
These applications may require narrow wavelength ranges, PM fiber, low relative intensity noise or customized control modes.
It does not correct:
ASE reduces OSNR, particularly when several amplifiers are cascaded. A link may have sufficient optical power but still fail because signal quality is inadequate.
Excessive launch power can cause:
A C-band EDFA is not a universal amplifier for every optical wavelength.
Unlike passive components, amplifiers require:
| Selection Factor | Questions to Confirm |
|---|---|
| Application | DWDM, CATV, DCI, PON extension, sensing or laboratory use? |
| Amplifier technology | EDFA, Raman, SOA, EYDFA or another type? |
| Position | Booster, in-line, pre-amplifier or dual-stage? |
| Wavelength | C-band, L-band, O-band or a specialty wavelength? |
| Input power | Total input and per-channel input? |
| Gain | How much span or component loss must be compensated? |
| Output power | Total and per-channel requirement? |
| Noise figure | What OSNR margin is available? |
| Channel count | Single-channel or multi-channel? |
| Gain flatness | How uniform must the channels be? |
| Control mode | AGC, APC, ACC or network-managed operation? |
| Polarization | Standard single-mode or PM amplification? |
| Connectors | LC/UPC, LC/APC, SC/APC or bare fiber? |
| Monitoring | Input/output power, pump current, temperature and alarms? |
| Management | Local display, Ethernet, SNMP, RS-232 or another interface? |
| Form factor | Module, benchtop, 1U rack or integrated line-system card? |
Assume a single-channel C-band link has:
Received power without amplification:
0 − 18 − 4 = −22 dBm
To maintain a 3 dB margin above sensitivity, the target receiver level is:
−20 + 3 = −17 dBm
The approximate required net gain is:
−17 − (−22) = 5 dB
However, amplifier selection cannot stop at 5 dB. It must also verify:
In many practical cases, changing the transceiver class or correcting excessive passive loss may be more appropriate than adding an amplifier.
The amplifier may have sufficient gain but insufficient output power or poor noise performance.
This is particularly dangerous in DWDM and CATV systems.
A conventional C-band or L-band EDFA will not provide useful gain for a standard 1310 nm O-band signal.
An amplifier can produce too much power as easily as too little.
Each stage adds ASE.
They are applications or product optimizations, not fundamental gain mechanisms.
Most standard PON deployments rely on the specified passive link budget. Amplification is reserved for engineered extension cases.
An amplifier should not be used to conceal:
No.
It increases optical power. The data rate remains determined by the transmitter, receiver and communication standard.
Yes, when the channels fall within its gain band and the total channel loading remains within its specifications.
A conventional C-band or L-band EDFA cannot. An O-band SOA, Raman system or another specialty amplifier may be required.
Gain is the increase relative to input power.
Output power is the absolute power leaving the amplifier.
A booster is placed after the transmitter and prioritizes high launch power.
A pre-amplifier is placed before the receiver and normally prioritizes low noise.
A real amplifier generates ASE noise in addition to amplifying the signal. As amplifier stages accumulate, the ratio between signal power and optical noise generally deteriorates.
It can extend the distance between regenerators, but it cannot reshape or retime the signal.
Neither is universally better.
EDFA is mature and relatively straightforward to deploy. Raman amplification can improve effective span performance but requires more complex engineering and safety controls.
Not necessarily.
Many coherent telecom systems use ordinary single-mode line amplifiers and polarization-diverse receivers. PM EDFAs are used when the application specifically requires preservation of a defined polarization axis.
Fiber optic amplifiers are essential in many optical transmission, distribution and measurement systems, but they are not universal signal-repair devices.
EDFA technology provides mature C-band and L-band amplification for DWDM, CATV and optical test systems. Raman amplification creates gain within the transmission fiber and can improve long-span performance. SOAs provide compact semiconductor-based amplification, while EYDFAs and other rare-earth-doped amplifiers address higher-power or specialty wavelength applications.
Correct selection requires consideration of:
SunmaFiber supplies configurable optical amplifier solutions for telecommunications, CATV, DWDM, sensing and laboratory applications. Available configurations may include C-band and L-band EDFAs, booster amplifiers, in-line amplifiers, pre-amplifiers, high-power designs and polarization-maintaining options. Final specifications should be established from the complete optical link budget and system requirements rather than gain alone.
