In fiber optic networks, engineers normally try to minimize signal loss. However, more optical power is not always better.
When a short fiber link, high-output transmitter or optical amplifier delivers excessive power to a receiver, the receiver may enter its overload region. This can increase bit errors, destabilize the connection or, in extreme cases, exceed the optical input rating of the equipment.
A fiber optic attenuator intentionally introduces a controlled amount of optical loss so that the received signal remains within the equipment’s acceptable operating range.
Fiber attenuators are commonly used for:
Selecting an attenuator requires more than choosing a value such as 5 dB or 10 dB. Wavelength, fiber type, connector polish, return loss, attenuation tolerance and maximum optical power must all match the application.
A fiber optic attenuator is a passive optical component that introduces a controlled reduction in optical signal power within a fiber transmission line. ITU-T G.671 defines an optical attenuator as a passive component that produces controlled signal attenuation in an optical fiber transmission system.
Attenuation is expressed in decibels:
An attenuator does not change the data rate, modulation format or network protocol. Its purpose is simply to reduce optical power in a controlled and predictable manner.
It also does not improve optical signal-to-noise ratio. In an ideal attenuator, signal and optical noise are both reduced. The device is used to place the signal within the receiver’s operating range, not to repair a poor-quality signal.
Every optical receiver has an acceptable input-power range.
Two important limits are:
If received power is below sensitivity, the link may experience errors or fail. If it is above the overload limit, the photodetector and receiver electronics may saturate.
Receiver sensitivity and overload are therefore both important parameters when calculating the optical link budget. VIAVI identifies them as primary receiver specifications used in optical transceiver testing.
A correctly selected attenuator reduces excessive power while keeping the signal safely above the receiver sensitivity limit.
Optical transceivers are often designed with enough launch power to support their maximum specified link distance.
When the same transceiver is used across only a few meters of fiber, the link loss may be too low. The receiver can consequently receive more power than intended.
This situation is particularly relevant to:
An attenuator can add the loss that the physical link does not naturally provide.
A variable optical attenuator is commonly placed between a reference transmitter and a receiver under test.
The attenuation is gradually increased until the receiver reaches a defined bit-error-rate threshold. The corresponding received power is then used to determine receiver sensitivity. VIAVI describes this VOA-based configuration as a standard receiver-sensitivity measurement method.
During system development or acceptance testing, engineers may need to simulate:
A VOA allows loss to be introduced without physically adding long cable spools or multiple passive components.
Attenuators may be used to reduce excessive power in selected paths or wavelength channels.
Examples include:
ITU-T L.31 identifies receiver overload prevention, PON branch balancing and optical-system measurements as representative attenuator applications.
In operational DWDM networks, channel-level power equalization may also be performed by integrated VOAs, wavelength-selective switches or dynamic gain-control equipment rather than individual connector-style attenuators.
Fiber attenuators are primarily divided into fixed and variable types.
A fixed attenuator provides one predetermined attenuation value.
Common nominal values include:
Available values vary by manufacturer and product family.
Fixed attenuators are generally appropriate when the required attenuation value is already known and is not expected to change.
A Variable Optical Attenuator, or VOA, allows attenuation to be adjusted across a specified range.
Adjustment may be:
ITU-T L.31 recognizes both continuously variable and step-adjustable designs, as well as mechanical and electrically controlled implementations.
EXFO lists BER testing, loss simulation, optical-margin analysis, system characterization and WDM power balancing among the principal applications of multi-channel VOAs.

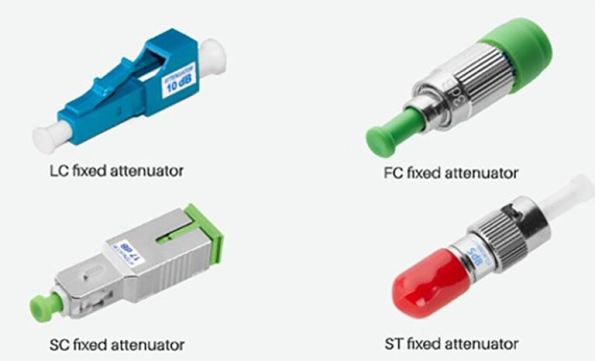

A plug-type attenuator normally has:
Examples include:
It can be plugged directly into an equipment port or adapter, after which the patch cable is connected to the female side.
The male-to-female optical pad is one of the most widely used fixed-attenuator configurations because it can be inserted without modifying the rest of the fiber plant.
An adapter-style attenuator usually has female interfaces on both sides.
It can be installed in:
The connector type and polish must match both mating patch cords.

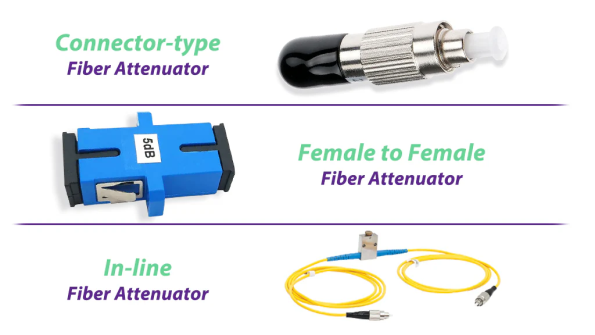

An in-line attenuator is integrated into a fiber assembly.
It may be supplied as:
In-line designs are useful for permanent installations and customized optical assemblies.
ITU-T L.31 refers to attenuators with attached fibers as attenuating patch cords and notes that unconnectorized versions may be spliced directly into the link.

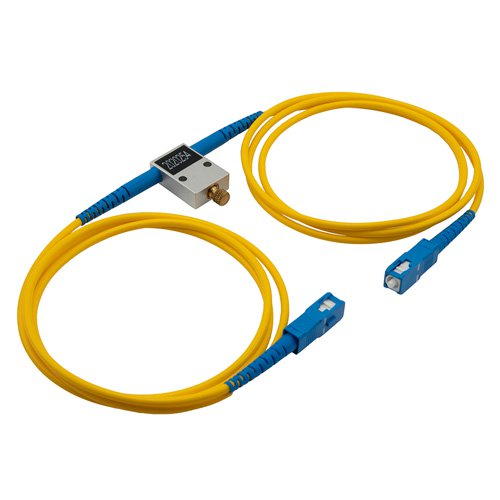

Laboratory and production VOAs may include:
These systems are designed for repetitive measurements, production testing and automated optical-component characterization.
Fiber mode must match the network.
Single-mode attenuators are commonly designed for wavelengths such as:
They are used in:
Multimode attenuators are designed for multimode fiber systems, typically operating around:
Multimode attenuation can be affected by the distribution of optical modes launched into the fiber. A properly designed multimode VOA should therefore provide stable attenuation under different mode-fill conditions. EXFO distinguishes its single-mode MEMS implementation from a multimode neutral-density-filter design optimized for mode-independent attenuation.
A single-mode attenuator should not be substituted for a multimode attenuator merely because the connector fits mechanically.
Different attenuator designs use different physical mechanisms.
These may include:
The implementation depends on whether the component is fixed, manually adjustable, electronically controlled, single-mode or multimode.
A well-designed attenuator should provide controlled loss while minimizing:
The operating principle is normally less important to the purchaser than the verified optical specifications.
Nominal attenuation is the intended amount of optical loss.
Examples include 3 dB, 5 dB or 10 dB.
The actual measured attenuation may differ slightly from the nominal value.
Tolerance describes the permitted difference between nominal and actual attenuation.
For example, a nominal 5 dB attenuator with a stated tolerance of ±0.5 dB may produce an actual attenuation between 4.5 and 5.5 dB.
Tolerance is product-specific and should not be assumed to be the same for every attenuator value.
Attenuation may vary with wavelength.
Confirm whether the attenuator is designed for:
An attenuator intended for 1550 nm should not automatically be assumed to provide the same nominal loss at 850 nm.
Wavelength-dependent loss describes how much the attenuation changes across the specified wavelength range.
Low wavelength dependence is particularly important in:
Return loss indicates how little optical power is reflected back toward the source.
A higher return-loss value indicates lower back reflection.
Low reflection is important for:
APC connectors generally provide better reflection performance than UPC connectors, but both sides of the connection must use the same polish type.
UPC and APC connectors must not be directly mated.
Polarization-Dependent Loss, or PDL, describes the change in attenuation as the input state of polarization changes.
Low PDL is important in:
Every attenuator has a maximum permissible input power.
The required rating depends on:
Standard telecom plug attenuators should not automatically be used in high-power EDFA or fiber-laser systems.
ITU-T L.31 includes optical-power linearity among the fundamental attenuator parameters and notes that power handling must be verified without permanent damage to the attenuating region.
For outdoor, industrial or telecom installations, check:
ITU-T identifies mechanical endurance, vibration, cold, dry heat and damp heat among the relevant environmental and mechanical characteristics of fixed attenuators.
The approximate received power without an attenuator is:
Received power = Transmitter output power − Existing link loss
The required attenuation is then:
Required attenuation = Received power without attenuator − Target received power
Assume:
Received power without an attenuator:
+3 dBm − 2 dB = +1 dBm
Required attenuation:
+1 dBm − (−5 dBm) = 6 dB
A nominal 6 dB attenuator would place the expected receiver input near −5 dBm.
Before selecting it, also confirm:
Whenever possible, measure the actual received power with an optical power meter rather than relying only on nominal datasheet values.
A fixed attenuator is commonly installed near the receiver.
This provides several advantages:
ITU-T L.31 notes that attenuators are normally inserted at the receiving end of a link for this reason.
The correct location may differ in laboratory, amplified or multi-channel systems, so the complete optical design should still be reviewed.
Fixed attenuators are installed when the calculated or measured receiver power exceeds the module’s overload specification.
Attenuators may be used during commissioning, testing or exceptional cases where a branch delivers excessive receiver power.
They should not replace proper splitter design and optical-budget planning.
High-output CATV transmitters and EDFAs may require attenuation to establish the correct receiver level at nodes or distribution branches.
The attenuator must have adequate power handling and return-loss performance.
VOAs may be used to control individual channel power during:
In live networks, integrated dynamic power-control devices may be preferable to multiple plug attenuators.
VOAs are used to measure:
High-power VOAs may be used to control EDFA input or output during testing.
This requires a device specifically rated for the optical power involved. The designer must also consider ASE, OSNR and amplifier saturation rather than only total power.
Selecting 5 dB simply because it is a common value may leave the receiver overloaded or reduce the signal below sensitivity.
The nominal attenuation at 1550 nm may not equal the attenuation at 850 nm.
The connectors may physically enter an adapter, but the different end-face geometries can cause high loss, reflection and permanent damage.
The result may depend strongly on launch conditions and may not provide the expected attenuation.
A standard fixed attenuator may overheat or suffer permanent damage in a high-power amplified system.
Stacking several attenuators creates additional connector interfaces, reflections and mechanical leverage.
Where possible, use one attenuator with the required total value.
An attenuator cannot correct:
The underlying problem should be diagnosed before adding attenuation.
Contamination can alter measured loss and damage mating end faces.
Inspect and clean every interface before installation and testing.
It is a passive optical component that intentionally reduces optical signal power by a controlled amount.
A fixed attenuator provides one preset loss value. A VOA allows the loss to be adjusted manually or electronically.
No. It does not change the nominal data rate. However, excessive attenuation can lower received power below sensitivity and cause errors or link failure.
It can improve receiver operation when the original power is too high. It does not repair noise, dispersion or signal distortion.
It is commonly installed near the receiver, although the correct location depends on the link architecture.
Yes, but the attenuator must support the amplifier’s optical power. High-power applications may require a dedicated high-power fixed attenuator or VOA.
Only when the product specification covers both wavelengths and guarantees the required attenuation tolerance across that range.
APC generally provides lower back reflection and is preferred in reflection-sensitive systems. The choice must match the existing connector and equipment interface.
Measure or calculate the receiver power without attenuation, select a target within the receiver’s specified range and calculate the difference.
Fiber optic attenuators are small but important components for controlling optical power in communication and test systems.
Fixed attenuators provide stable loss for permanent installations, while variable optical attenuators support receiver testing, loss simulation, optical-margin analysis and dynamic power adjustment.
Correct selection requires consideration of:
Most importantly, attenuation should be calculated from the actual optical power budget. An attenuator should place the receiver safely between its sensitivity and overload limits without unnecessarily reducing system margin.
Sunma supplies fixed and variable fiber optic attenuators in LC, SC, FC and ST configurations, with single-mode and multimode options, multiple attenuation values and UPC or APC end-face choices. Customized in-line attenuators and high-power solutions are also available for telecommunications, FTTH, CATV, optical testing and amplified fiber systems.
