As fiber counts increase inside data centers, telecommunications rooms and enterprise networks, connector density becomes a practical design constraint.
A panel filled with large-format connectors occupies valuable rack space and can make patching, labeling and maintenance more difficult. The LC connector addresses this challenge with a compact 1.25 mm ferrule and a familiar latch mechanism.
Today, LC connectivity is widely used in:
However, “LC” describes only the connector format. It does not independently define the fiber type, wavelength, polish, data rate, optical loss or cable construction.
An LC assembly must still be selected according to:
This guide explains the LC connector family and the main LC cables, adapters, attenuators and patch-panel configurations used in optical networks.

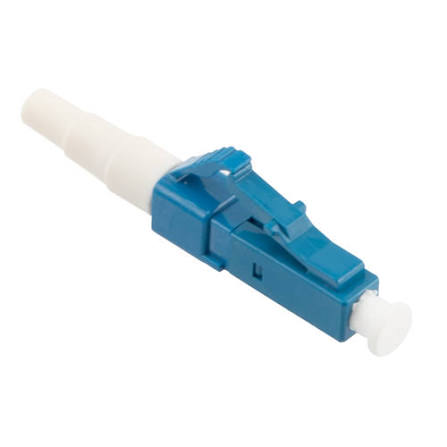

LC is a small-form-factor fiber optic connector developed by Lucent Technologies. It is commonly referred to as the Lucent Connector.
Its main features include:
The 1.25 mm ferrule is half the diameter of the 2.5 mm ferrule used by connectors such as SC, FC and ST. This allows more LC ports to be installed within the same panel area.
The LC interface is standardized by specifications including IEC 61754-20 and TIA-604-10, also known as FOCIS-10.
The LC connector contains a precision ceramic ferrule that holds and centers the optical fiber.
When two LC connectors are mated through an adapter, a split alignment sleeve inside the adapter aligns the two ferrules.
These parts perform different functions:
| Component | Function |
|---|---|
| LC ferrule | Holds and positions the optical fiber |
| Split sleeve | Aligns two mating ferrules inside the adapter |
| Connector housing | Provides mechanical keying and retention |
| Latch | Keeps the connector secured in the adapter |
| Boot | Protects the cable-to-connector transition |
The ferrule is commonly made from zirconia ceramic. The adapter sleeve may also be ceramic, although some multimode or less demanding applications use metal sleeves.
When an LC connector is inserted into an adapter:
Optical performance depends on:
The connector does not increase network speed. It provides a low-loss optical interface between two fibers.
An LC simplex connection carries one optical fiber.
Typical applications include:
Simplex connectors provide greater routing flexibility because each fiber can be installed independently.
An LC duplex assembly places two LC connectors together with a clip or integrated housing.
The two fibers normally provide:
Typical applications include:
The duplex clip maintains spacing and polarity between the two fibers.

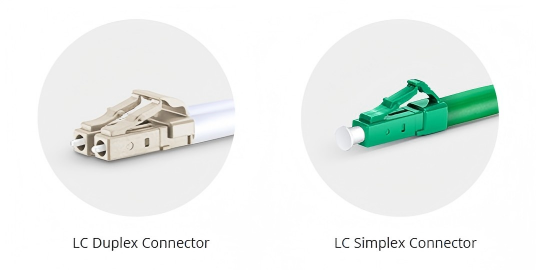

| Feature | LC Simplex | LC Duplex |
|---|---|---|
| Fiber count | One | Two |
| Common use | BiDi, PON, sensing and testing | Duplex Ethernet and equipment links |
| Polarity | Managed as an individual fiber | Maintained by duplex clip |
| Routing flexibility | Higher | Lower but easier to manage as a pair |
| Connector density | One port per fiber | Two fibers grouped together |
LC connectors are available with different end-face polishes.
UPC means Ultra Physical Contact.
A UPC ferrule has a polished, curved end face designed to create physical contact between the two fiber cores.
Common characteristics include:
The UPC end face is not flat. Its controlled spherical geometry is an important part of achieving physical contact.
APC means Angled Physical Contact.
An APC connector normally uses an approximately 8-degree angled end face. Reflected light is directed away from the fiber core, improving return-loss performance.
Common characteristics include:
UPC and APC connectors must not be directly mated.
Their end-face geometries are different, and direct mating can cause:
Adapters do not convert one polish into another. Both mating connectors must use compatible end-face types.
Specifications vary by product design and test method. Common single-mode patch-cord requirements may include:
| Parameter | Standard LC Assembly | Low-Loss LC Assembly |
|---|---|---|
| Insertion loss | Commonly ≤0.2–0.3 dB | May be specified below 0.15 dB |
| UPC return loss | Commonly ≥50 dB | Product-dependent |
| APC return loss | Commonly ≥60 dB | Product-dependent |
| Mating durability | Commonly hundreds of cycles | Product-dependent |
These should not be treated as universal values.
For a professional product specification, state:
Multimode products generally use different return-loss limits from single-mode assemblies.
The LC connector itself does not define the transmission rate.
LC can be used with many duplex optical transceivers across a wide range of speeds, including selected:
However, not every transceiver at these speeds uses LC.
Depending on the optical standard, a module may instead use:
For example:
The cable must be selected according to the exact transceiver specification.
The standard LC connector uses a conventional latch and boot.
It is suitable for:
An LC Uniboot cable combines two fibers inside one common jacket instead of using two separate cable legs.
Potential benefits include:
Some Uniboot designs allow polarity reversal by opening or rotating part of the connector housing. The reversal method varies by manufacturer.
Uniboot does not change the optical standard. It is a cable-management construction used with compatible duplex-LC interfaces.
A pull-tab LC connector includes an extended extraction tab.
It is useful in high-density panels where technicians cannot easily grip the connector body.
Benefits may include:
Behind-the-Wall, or BTW, LC connectors are compact terminations intended for internal equipment or backplane installation.
They are frequently used with:
Ruggedized LC systems place a standard or modified LC optical interface inside a sealed protective housing.
Depending on the design, they may provide:
Examples include outdoor radio, antenna and industrial connector systems. Compatibility between ruggedized systems should not be assumed merely because they contain an LC ferrule.
An LC-to-LC patch cable has LC connectors on both ends.
It may be configured as:
Typical uses include:
A hybrid cable has an LC connector at one end and another connector type at the opposite end.
Common configurations include:
Hybrid cables are useful when connecting equipment with different optical interfaces.
The fiber type and polish must still be compatible at both ends.
An LC pigtail has:
The bare end is normally fusion-spliced to a distribution cable inside:
LC pigtails are available as single units or color-coded multi-fiber sets.
An LC Uniboot patch cable contains two fibers in one jacket.
It is most useful in:
It should be used only with equipment that requires duplex LC connectivity.
Parallel SR4 applications normally require MPO-based cabling unless the optical module itself uses a duplex interface such as an appropriate BiDi design.
An armored LC cable includes an additional protective layer, such as a flexible stainless-steel tube.
It may improve resistance to:
Armor does not automatically make the cable:
The complete cable specification must be checked.
Bend-insensitive fiber reduces macrobending loss when the cable is routed around tighter bends.
Common single-mode examples include G.657.A1 and G.657.A2 fiber.
These cables are useful in:
Bend-insensitive fiber still has a specified minimum bend radius. It should not be folded, pinched or sharply kinked.
Low-loss LC assemblies use tightly controlled ferrule, polishing and alignment processes.
They are valuable when a link contains:
“Ultra-low-loss” should be supported by a stated maximum insertion-loss specification and individual test results.
A small connector-loss reduction does not translate directly into a fixed number of additional kilometers. Total reach also depends on fiber attenuation, dispersion, transmitter power, receiver sensitivity and engineering margin.
A mode-conditioning patch cord is used in specific legacy multimode applications, most commonly when a 1000BASE-LX/LH single-mode-style laser transmitter operates over installed OM1 or OM2 multimode fiber.
The transmit leg contains an offset single-mode-to-multimode launch designed to reduce differential-mode-delay problems.
Important points include:
An MPO-to-LC breakout cable has:
Common applications include:
The cable must match:
A passive breakout cable separates optical lanes; it does not independently convert one data rate into another.

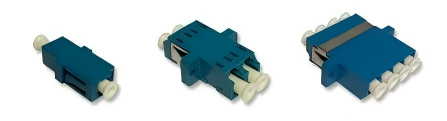

An LC adapter aligns and joins two LC connectors.
The internal split sleeve centers the ferrules.
A simplex adapter connects one fiber channel.
Typical uses include:
A duplex adapter connects two LC channels in one housing.
It is widely used for duplex Ethernet and telecommunications links.
A quad adapter contains four simplex LC channels, normally presented as two duplex pairs or four individual ports.
It can increase panel density while retaining familiar LC connectivity.
A flanged adapter is secured to the panel using screws or clips.
It provides strong mechanical retention.
A flangeless adapter normally snaps into a correctly sized panel opening.
It can provide a cleaner front-panel appearance and faster installation.
A shuttered adapter contains an internal or external dust-protection mechanism.
Potential benefits include:
The shutter does not eliminate the need to inspect and clean the connector before mating.
A hybrid adapter connects different connector formats, such as:
A hybrid adapter changes the mechanical interface but does not convert fiber mode or end-face polish.

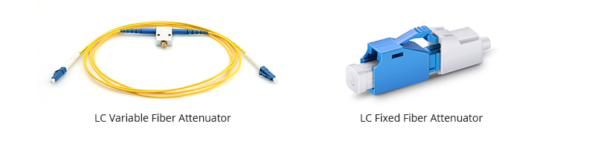

An LC attenuator introduces controlled optical loss into an LC link.
A fixed LC attenuator provides a preset attenuation value, such as:
A common plug-style design has:
It can be inserted directly in front of an optical receiver or inside a patch panel.
An in-line attenuator is built into a fiber cable or compact optical component.
It may be suitable for permanent installations where the attenuator should not project from the equipment port.
A VOA provides adjustable loss.
Some laboratory and rack-mounted VOAs use LC adapters, but the attenuation mechanism is contained inside the instrument or module rather than in the LC connector itself.
VOAs are used for:
Confirm:
Calculate the attenuation from actual transmitter power, link loss and receiver limits rather than selecting a common value arbitrarily.

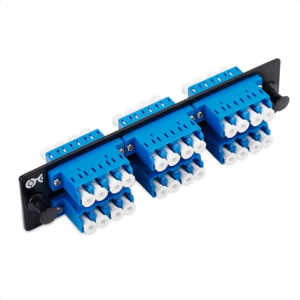

LC patch panels organize, protect and present LC fiber connections.
A fixed panel has a predetermined number of LC adapter openings.
It is suitable for:
A sliding or draw-out panel allows the tray to move forward for access to:
This can simplify installation and maintenance in crowded racks.
A modular chassis accepts replaceable cassettes or adapter plates.
Benefits include:
High-density LC panels use compact adapters, staggered rows or pull-tab connectors to increase port count.
When evaluating panel density, distinguish between:
For example, 72 LC duplex ports represent 144 individual fibers.
Density claims should always define which measurement is being used.
A pre-terminated panel uses MPO trunks or internal MPO-to-LC cassettes to present LC ports at the front.
Potential benefits include:
The total optical loss must include the internal MPO and LC connection points.
Consider:
| Selection Factor | Questions to Confirm |
|---|---|
| Fiber type | OS2, OM1, OM2, OM3, OM4 or OM5? |
| Fiber count | Simplex, duplex or multi-fiber fan-out? |
| Polish | UPC or APC? |
| Connector ends | LC-to-LC or hybrid? |
| Cable construction | Standard, Uniboot, armored, pigtail or breakout? |
| Wavelength | 850, 1310, 1490, 1550 nm or another range? |
| Data interface | Which exact transceiver is being connected? |
| Insertion loss | Standard or low-loss requirement? |
| Return loss | Is the application reflection-sensitive? |
| Jacket | PVC, LSZH, OFNR, OFNP, PE or another rating? |
| Environment | Indoor, outdoor, industrial or laboratory? |
| Panel type | Fixed, sliding, modular or high-density? |
| Documentation | Are IL, RL, polarity or end-face reports required? |
Contamination is one of the most common causes of fiber connection problems.
Use an inspect-clean-inspect procedure:
Suitable cleaning methods may include:
Avoid:
Standard consumer alcohol wipes may leave residue or fibers and are not the preferred general method.
Loss depends on ferrule quality, fiber type, polish, alignment and test method.
Their geometries are incompatible.
Different optical standards at the same rate can use different connector types.
An adapter cannot passively convert a parallel MPO interface into duplex LC without an appropriate breakout architecture and compatible optics.
Uniboot contains two fibers and is intended for duplex-LC interfaces.
One duplex LC port represents two fibers.
Colors are useful identifiers but may be customized. Check the printed cable marking and product specification.
A connector can be correctly specified and still fail because of contamination.
It is a fiber optic cable terminated with LC connectors at both ends.
It may be simplex, duplex, Uniboot, single-mode or multimode.
LC is commonly expanded as Lucent Connector and was developed by Lucent Technologies.
Single-mode LC cables normally use OS1, OS2 or another single-mode fiber and are used with compatible single-mode optics.
Multimode LC cables use OM1, OM2, OM3, OM4 or OM5 fiber and are used with compatible multimode optics.
The LC connector housing alone does not determine the fiber type.
It consists of two LC connectors joined together so that two fibers can be handled as one transmit-and-receive pair.
No.
A hybrid patch cable or hybrid adapter is required.
LC does not have one fixed speed rating.
Supported speed depends on the optical transceiver, wavelength, fiber type and link budget. LC is used by many duplex optical interfaces from low-speed systems through selected 400G and 800G applications.
No.
Their end-face geometries are incompatible.
Common stocked lengths may include:
The correct length should minimize excess slack without placing tension on the connectors.
Inspect it first, then use an LC-compatible one-click cleaner, cassette cleaner or approved lint-free cleaning method. Inspect it again before mating.
LC provides higher port density because of its smaller ferrule and housing.
SC may be easier to handle in lower-density installations. The appropriate connector depends on equipment compatibility, density, environment and maintenance requirements.
LC has become one of the most widely used fiber optic connector formats because it combines compact dimensions, familiar latching and broad availability across single-mode and multimode systems.
Its 1.25 mm ferrule supports higher panel density than traditional 2.5 mm connector formats, but LC should not be treated as one uniform product.
A complete LC solution may include:
Correct selection requires matching the LC assembly to the fiber type, transceiver interface, wavelength, polish, optical-loss budget and installation environment.
Sunma supplies configurable LC fiber optic products, including patch cables, pigtails, adapters, attenuators, breakout assemblies and patch-panel solutions. Fiber type, connector polish, cable construction, length, jacket, polarity and test requirements can be specified according to the application.
English Home
简体中文
Online Message
Skype
QQ:20181072
