Fiber optic and copper cables are both essential to modern networks, but they solve different connectivity problems.

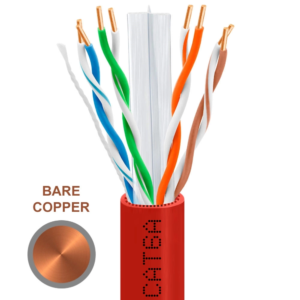

Copper twisted-pair cabling remains widely used for computers, Wi-Fi access points, IP cameras and other devices that need standard RJ45 connectivity or Power over Ethernet. Direct-attach copper cables provide economical, low-power connections between switches and servers over very short distances.
Fiber optic cable becomes more attractive when the network requires:
The correct choice is rarely based on speed alone. Distance, equipment interfaces, power requirements, pathway capacity, installation cost and upgrade plans must all be considered.
Choose twisted-pair copper cable when:
Choose direct-attach copper cable when:
Choose fiber optic cable when:
The term copper Ethernet cable can refer to two substantially different products.
This is conventional Category cabling, including:
It normally uses RJ45-compatible interfaces and supports applications such as:
Category cabling is commonly installed as permanent horizontal cabling inside homes, offices, factories and data centers.
A Direct-Attach Copper cable, or DAC, is a twinaxial cable assembly with integrated transceiver-style connectors such as:
DAC is mainly used for short server-to-switch and switch-to-switch connections.
A DAC is not an RJ45 Category cable. Its supported distance, port type and application are different.
This distinction is important because saying “copper supports only 40G” ignores current 100G and 400G DAC assemblies. Cisco, for example, currently specifies passive 400G QSFP-DD DAC solutions in lengths from 0.5 to 3 meters.
| Feature | Fiber Optic Cable | Twisted-Pair Copper | Direct-Attach Copper |
|---|---|---|---|
| Signal type | Optical | Electrical | Electrical |
| Common interface | LC, MPO/MTP, CS, SN and others | RJ45 | SFP/QSFP/OSFP-family connectors |
| Typical distance | Meters to many kilometers, depending on optics | Up to 100 m for many applications; 30 m for Cat8 25G/40G | Normally a few meters |
| Common data rates | 1G through 800G and beyond, depending on optics | Commonly 1G–10G; Cat8 supports 25G/40G over short channels | 10G through 400G and higher, product-dependent |
| EMI susceptibility | Optical path is immune | Can be affected; construction and shielding matter | Can be affected, but used over short controlled paths |
| Electrical isolation | Yes with all-dielectric cable | No | No |
| Power delivery | No conventional PoE | Supports PoE | Does not normally provide endpoint PoE |
| Cable size at high rates | Generally small and lightweight | Larger at higher categories | Thicker and heavier as rate or length increases |
| Field termination | Requires fiber-specific tools and skills | Relatively straightforward | Factory-terminated |
| Best use | Longer, high-density or electrically noisy links | Horizontal building cabling and powered endpoints | Very short data center links |

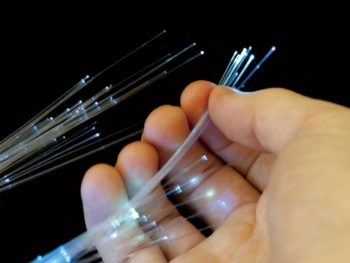

Fiber optic cable transmits information as modulated light through a glass or plastic optical waveguide.
Copper cable transmits electrical signals through conductive pairs or twinaxial conductors.
The optical cable does not perform the electrical-to-optical conversion itself. That function is handled by active devices such as:
This distinction matters because the complete performance of a fiber link depends on both the passive cable and the active optical modules.
A structured copper channel commonly has a maximum length of 100 meters, usually consisting of:
For new 10GBASE-T installations requiring the full 100-meter channel, Cat6A is the recommended category. Existing Cat6 may support 10G over shorter distances, but performance between approximately 37 and 55 meters depends on alien crosstalk and installation conditions.
Cat8 uses a different short-channel topology. IEEE development material for 25GBASE-T and 40GBASE-T specifies balanced Category 8 or Class I/II cabling with a maximum channel length of approximately 30 meters and no more than two connectors.
Passive DAC is designed primarily for connections within one rack or between adjacent racks.
Current Cisco 400G passive DAC products are offered in lengths up to approximately 3 meters. Longer short-reach connections may use active copper cables or active optical cables, depending on the platform.
Fiber does not have one universal maximum distance.
The supported distance depends on:
Current 400G examples include:
Current 800G examples include:
For longer metro and long-haul networks, coherent optics, optical amplifiers and transport systems can extend transmission far beyond ordinary client-optics distances.
It is incorrect to assign one maximum data rate to either material.
The supported rate is determined by the complete signaling system.
Copper can support:
Fiber can support:
Current 400G modules may use MPO-12, MPO-16 or duplex LC depending on the optical standard. Therefore, “400G” alone is not enough information to select the cable.
Electrical signals in copper and light signals in glass both propagate at a substantial fraction of the speed of light in vacuum.
The fact that one medium may have a slightly higher propagation velocity does not determine its maximum Ethernet rate.
Data rate depends more heavily on:
For most enterprise and data center decisions, raw propagation velocity should not determine the cable choice.
End-to-end latency may also include:
For extremely latency-sensitive, very short data center links, passive DAC is often evaluated because it uses a direct electrical path without separate optical conversion. For longer distances, fiber normally becomes the practical option.
The optical transmission path does not carry electrical current and is immune to electromagnetic interference.
This makes fiber particularly suitable near:
Corning identifies EMI immunity as a fundamental advantage of optical fiber because the medium carries light rather than electricity.
Twisted-pair copper reduces interference through balanced signaling and twisted conductors. Shielded cable can provide additional protection, but performance depends on:
Copper should therefore not be described as having the same inherent interference immunity as fiber.
A major advantage of twisted-pair copper is its ability to carry data and electrical power over the same cable.
PoE is commonly used for:
IEEE 802.3bt expanded PoE to use all four twisted pairs.
Fiber optic cable does not provide conventional PoE because the glass fiber is not an electrical conductor.
A fiber-connected remote device therefore requires:
Copper does not act as a battery. If the PoE switch loses power, the powered device also loses power unless the switch or injector is supported by a UPS or another backup source.
An all-dielectric fiber cable provides no conductive path between two network locations.
This can reduce risks associated with:
This is one reason fiber is frequently preferred for campus links, substations and industrial facilities.
Metal-armored fiber cable may contain conductive components, so its bonding and grounding requirements must be evaluated separately.
At high data rates, fiber cables and active optical cables are generally thinner and lighter than equivalent long copper assemblies.
Cisco notes that its 400G AOCs are thinner and lighter than copper cables, helping cable management and airflow in high-density racks.
This becomes important when hundreds of links pass through:
DAC remains practical for very short connections, but higher-rate and longer copper assemblies can become thick and difficult to route.
Copper conductors are generally tolerant of ordinary handling, although excessive bending, pulling or connector damage can still degrade performance.
Optical fiber is made from glass and requires control of:
Fiber is not necessarily fragile when correctly packaged. Available constructions include:
For cables that are frequently moved, select a product specifically rated for repeated flexing or deployment. Do not simply choose an ordinary cable and assume that a higher fiber category makes it more durable.
Twisted-pair copper can be field-terminated using:
However, professional high-speed copper installation still requires control of:
RJ45 termination may be familiar, but a connector that passes a basic continuity test does not necessarily meet Cat6A performance.
Fiber installation may involve:
Pre-terminated fiber systems can be installed quickly without field polishing or splicing.
Fiber-specific maintenance requires:
Contamination is one of the most common causes of fiber-link problems.
Fiber does not emit the same external electromagnetic signal as a copper conductor and is generally more difficult to monitor through electromagnetic induction.
However, fiber is not impossible to tap.
Possible risks include:
Sensitive networks still require:
Neither media type should be considered secure solely because of its cable material.
There is no universal answer to whether fiber or copper costs less.
Total cost should include:
Fiber cable itself may be inexpensive, while optical modules increase the initial equipment cost. Conversely, repeated replacement of copper infrastructure can make fiber more economical over the complete network lifecycle.
Recommended options:
DAC is usually the first option when the required ports are compatible and the distance is only a few meters. Current 400G passive DAC products are specifically designed for in-rack and adjacent-rack links.
Recommended options depend on distance and density:
Recommended option:
Cat6 may remain appropriate for 1G, 2.5G and 5G networks or shorter 10G links. Existing Cat6 links should be tested before being relied upon for 10GBASE-T near their upper distance range.
Recommended option:
The main reason is PoE. Fiber can carry the data, but it normally requires a separate local power source.
Recommended option:
Fiber provides longer reach and electrical isolation between buildings. It also avoids creating a conductive copper path between different grounding systems.
Recommended option:
An all-dielectric fiber design may be preferable near high-voltage infrastructure.
Recommended option:
Even when the initial distance is relatively short, the cost of replacing campus backbone cable later often justifies installing single-mode fiber with spare strands.
Select the cable from the exact transceiver rather than the Ethernet rate alone.
Possible media include:
Current 400G and 800G portfolios demonstrate that the same data rate may be delivered over several connector formats and distances.
Use the following decision process.
Confirm whether the devices use:
Do not select cable using only “100G” or “400G.”
Record:
Include:
Use copper PoE where one cable must provide both data and power.
Use fiber when electrical isolation or EMI immunity is more important and separate power is available.
Consider:
Ask whether the permanent cable will remain in service for:
Single-mode fiber often provides greater long-term flexibility, but future compatibility still depends on connector type, fiber count and equipment strategy.
Do not compare only the cable price.
Include transceivers, labor, power, testing, pathway use and future replacement.
Fiber supports very high bandwidth and long distances, but a 1G fiber module still operates at 1G. Speed is determined by the active interface.
Balanced Cat8 cabling is associated with 25GBASE-T and 40GBASE-T, but short DAC assemblies currently support rates such as 100G and 400G.
Fiber transceivers may increase initial cost, but cable, pathway, power and lifecycle costs can favor fiber in high-density or long-distance systems.
It is not. Copper can be engineered to resist interference, while the optical fiber transmission medium is inherently immune to EMI.
Conventional fiber Ethernet does not provide PoE.
Single-mode fiber is also increasingly used in data centers, campus networks and short links where long-term upgrade flexibility is important.
The opposite is true. Frequent movement requires a high-flex, ruggedized or bend-insensitive cable designed for that duty.
Fiber and copper Ethernet cable serve different purposes.
Fiber is generally better for longer distance, EMI immunity, electrical isolation and high-density networks. Copper is generally better where RJ45 compatibility or PoE is required.
Both can carry 10G when used with compatible equipment.
Fiber supports a broader range of higher-speed and longer-distance standards, while Cat6A supports 10GBASE-T over a 100-meter channel.
Yes, through short DAC assemblies using compatible SFP/QSFP-family ports.
This is different from RJ45 twisted-pair Ethernet.
Not through conventional Ethernet fiber. The camera requires local power, a separate conductor, a hybrid cable or specialized equipment.
Not universally.
Latency depends on cable length, transceiver design, FEC, switches and application processing. Passive DAC is often attractive for very short, latency-sensitive links, while fiber is necessary for longer high-speed connections.
All-dielectric OS2 single-mode fiber is usually the preferred option because it supports long distances and avoids a conductive path between building grounds.
Cat6A is practical for endpoint connections requiring RJ45 and PoE.
Fiber is appropriate for backbones, telecommunications rooms, inter-floor links and high-bandwidth infrastructure. Many projects use both.
The decision depends on transceiver roadmap, distances and total cost.
OM4 remains common for short-reach optics, while OS2 provides greater reach and broader long-term flexibility.
Fiber optic cable and copper Ethernet cable are complementary technologies rather than universal substitutes.
Copper twisted-pair cabling remains highly effective for endpoint networks, RJ45 equipment and PoE-powered devices. DAC provides a low-cost solution for very short high-speed connections inside and between adjacent racks.
Fiber is generally preferred for:
The best selection process begins with the exact equipment interface and application—not with the assumption that one cable material is always faster, cheaper or better.
Before ordering, confirm:
Sunma supplies single-mode and multimode fiber optic cables, high-density MPO assemblies, LC patch cables, armored fiber cables and other optical connectivity products for data centers, enterprise networks, industrial facilities and telecommunications systems. Cable construction, fiber type, connector, length, jacket and testing requirements can be customized for the application.
